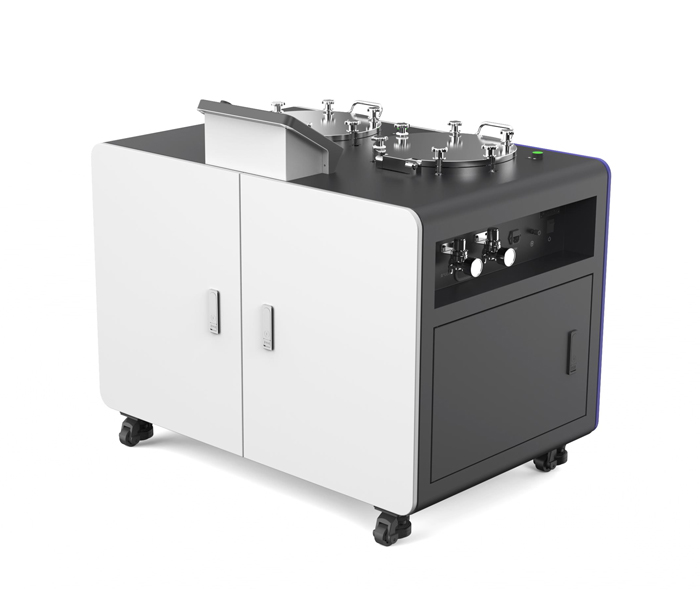

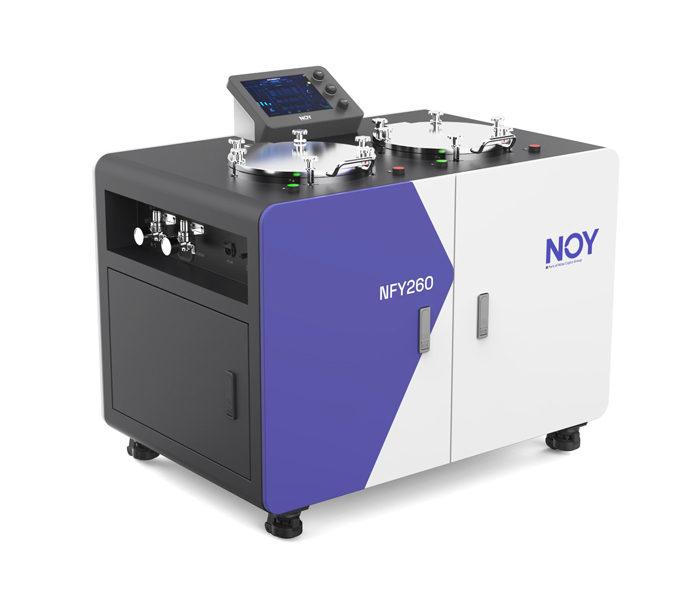

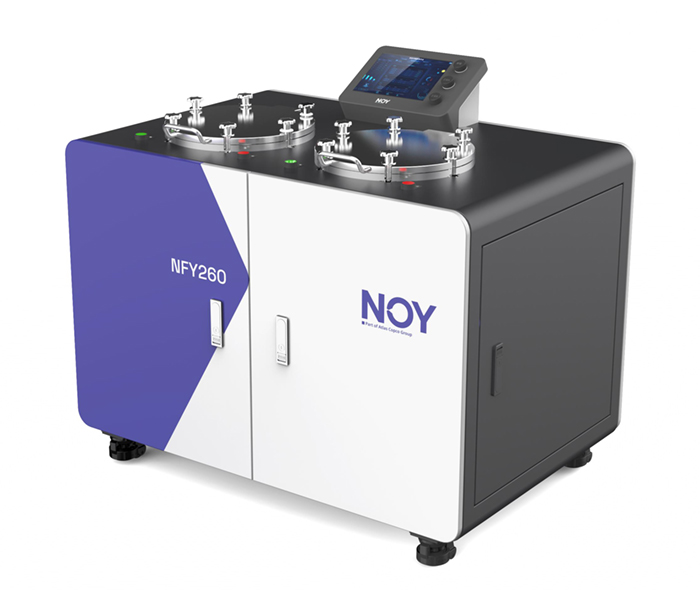

NFY260 Pressure Equipment
Product Introduction:
The NFY260 Equipment adopts a dual tank structure, and the dual tank container is equipped with a fluorine oil tank, which is an upper and lower structure. The fluorine oil tank is located below the pressure tank
Equipped with a touch screen, data such as pressure, liquid level, and fluorine oil level height are displayed on the screen.
Remark:New and old products will be dispatched randomly.
- Product overview
- Characteristics
- Technical Parameter
- Easy operation
- Large capacity, double pressure tank design, improve the efficiency of detection.
- Front button to achieve one-click automatic work.
- Platform operation to facilitate the placement of workpieces.
- Mobile casters, light placement equipment position.
- Large screen LCD display, can clearly display each workflow.
技术参数 Technical parameter
|
电压 / 功率 |
Voltage / Power |
220V/1000W |
|
使用压力 |
Withstand voltage |
≤0.8MPa |
|
真空压力 |
Vacuum pressure |
≤50Pa |
|
压力罐容积 |
Tank volume |
Φ260mm*227mm |
|
外形尺寸 |
Size |
（1080×720×822）mm |
|
重量 |
Weight |
200Kg |
