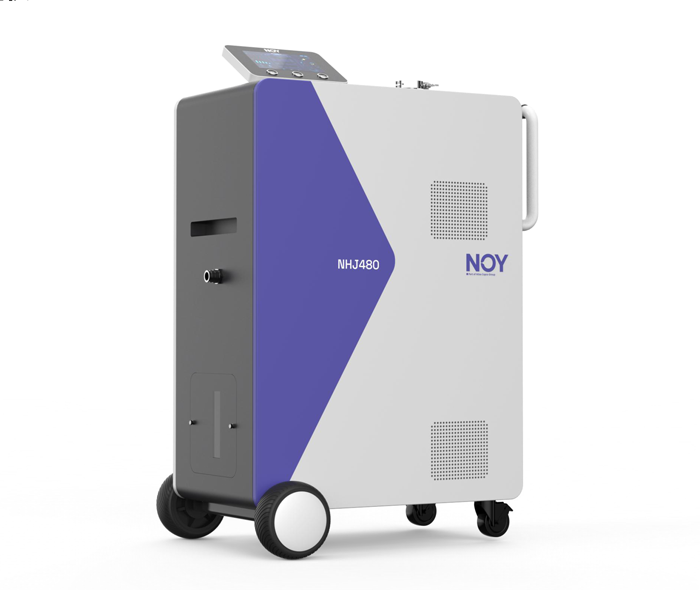

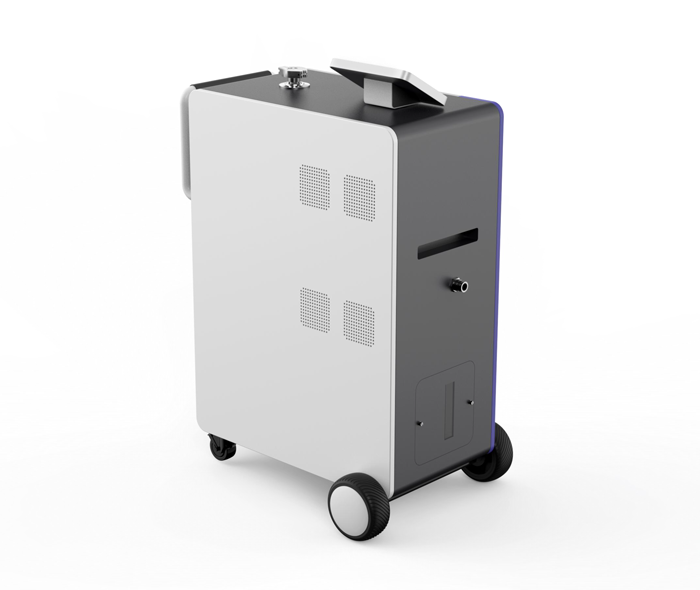

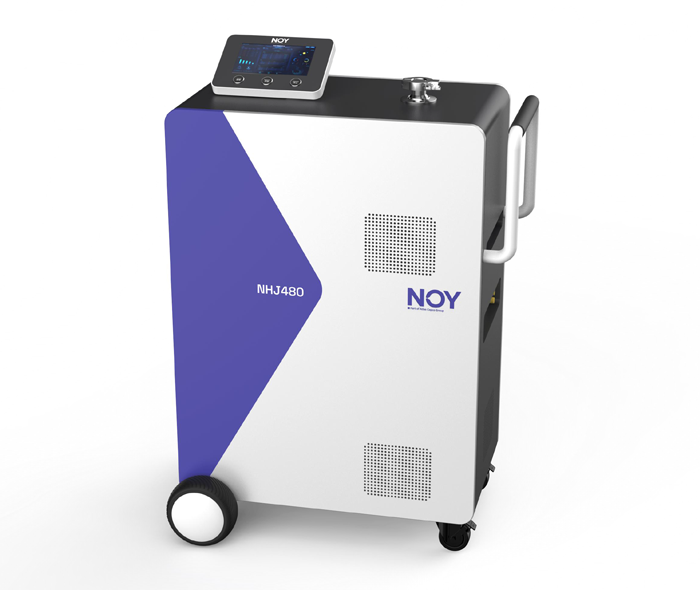

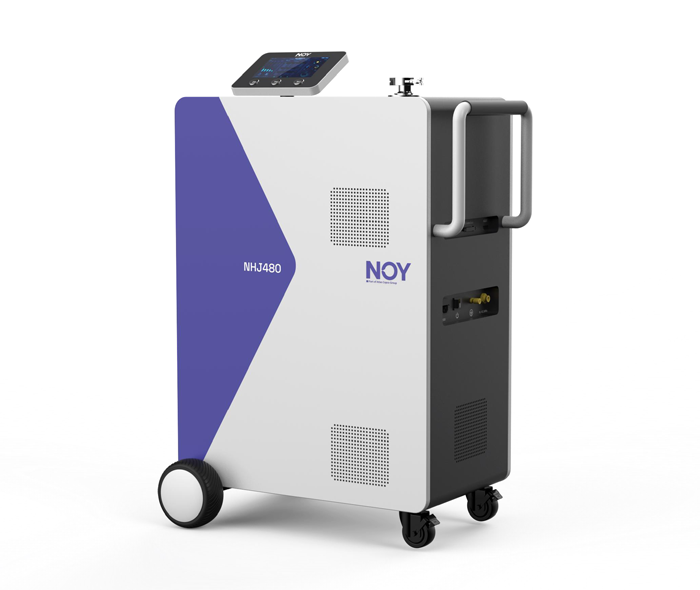

NHJ-400 is a fully automatic mobile helium mass spectrometer leak detector with a simple structure and superior performance, suitable for many industries.
- Product overview
- Characteristics
- Technical Parameter
- Easy operation
Using helium mass spectrometry and inverse diffusion principle,using 180° inhomogeneous magnetic field and automatic control technology. Automatic helium peak scanning, automatic calibration and automatic range switching are realized.
It has the characteristics of short start time, fast operation speed, high detection sensitivity and strong anti-interference ability.
Performance characteristics
Unique gas path design, can avoid dust into the instrument interior
Multi-mode function input, output, easy to connect a variety of automation equipment
Double iridium ion source, strong antioxidant capacity and long service life
The machine is effectively separated from the circuit, avoiding the interference of temperature, electromagnetic field and so on, which makes the leak detector run more stable and reliable
Technical parameter
|
Vacuum minimum leak detection rate |
3×10-13Pa·m³/s |
|
Vacuum leakage rate display range |
1×10-1 ~1×10-13 Pa·m³/s |
|
Minimum leak detection rate for suction gun |
5×10-9Pa·m³/s |
|
Range of leakage rate of suction gun |
1×10-1 ~1×10-9 Pa·m³/s(zero） |
|
Detectable masses |
H2，He3，He4 |
|
Start time |
≤90 S |
|
Response time |
≤0.5 S |
|
Leak Pressure |
≤2000 Pa |
|
Mainframe Power / Voltage |
100-120V、60Hz/200-240V、50Hz |
|
Work environment |
Temperature:5-40℃ Humidity:≤ 75% |
|
Language |
Chinese/English |
|
Size |
620*370*1027 mm |
|
Weight |
110 Kg |
|
Display units |
Pa·m³/s 、mbar·l/s、atm·cc/s、Torr•L/s、ppm |
Multiple measurement units to choose from, real-time updates of detection data, and direct output to generate Excel spreadsheets
Multiple large leakage protection modes fully protect the ion source from oxidation and prevent the molecular pump from being impacted when exposed to the atmosphere.Handheld remote control unit, capable of remote detection up to a distance of 150 meters without obstruction
One click start, automatic zeroing, and automatic calibration.
